2D Drawing and Animation
CS 357 HW1

Due Wednesday, February 18

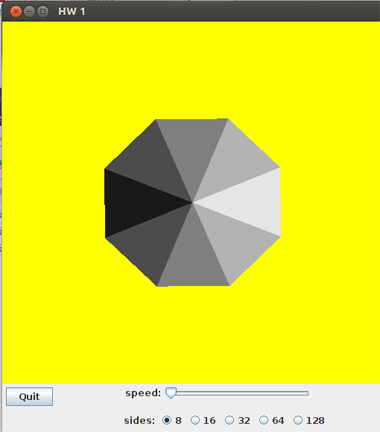

This is a first assignment using the 2D drawing features of OpenGL. Here you will learn to use a 2D viewport, set up an interface, and animate a simple display. The basic display looks like thisL

Note that the inscribed triangles are colored with a gray scale. Triangles with the lightest gray and the darkest gray are opposite each other (this is why all of the options have an even number of sides). In each direction the colors ramp down from darkest to lightest.

Three controls are available in the control panel:

• The Quit button terminates the program
• The Speed slider controls the rate of rotation of the figure. When it is all the way to the left the rotation shoud stop.
• Sides is a set of radio buttons for choosing the number of sides in the figure. These options should include at least 8, 16, 32, 64, and 128 sides. You may add others if you wish. T

Your first job is to implement this. This much of the program is worth 85 points (out of a possible 100). If you would like a higher grade than 85, find some ways to improve the program. Simple improvements involve adding color, options for reversing the rotation, changing the size of the wheel, and so forth. I'll let your imagination lead you to more substantive improvements. There is a maximum of 100 points on this assigment, but there is no limit to the honor and glory you can earn here.

### Part 1: Drawing.

You should draw your figure as an object inscribed in a circle. The x and y coordinates of a point on the unit circle are cos(theta) and sin(theta). If you want points on a circle of radius r centered at (x,y) they are ( x+r*cos(theta), y+r*sin(theta) ). Remember that the sine function in Java is Math.sin(x). Also remember that the math library trigonometric functions use radian measure; you can convert degrees to radians by multiplying by Math.PI/180.0. The darkest triangle in your object should be directly opposite the lightest; the colors should go from dark to light and back to dark as you move around the circle. You get a gray color by choosing the same value for the red, green and blue color chanels. glColor3f(0.0, 0.0, 0.0) gives black, glColor3f(0.5, 0.5, 0.5) gives a fairly dark gray, glColor3f(0.8, 0.8, 0.8) gives a light gray, and glColor3f(1.0, 1.0, 1.0) gives white. Color intensities don't ramp linearly, so you will have to play around a bit with the colors to get a spread that looks nice. You probably don't want to use full white or full black; they tend to overwhelm the picture. You should adjust the coordinate system on the canvas so the figure looks like it is inscribed in a circle, not an oval.

### Part 2: Animation

If you draw your objects starting from an initial angle theta that is stored in a class variable, it is easy to make the object rotate: just increment theta regularly in your update( ) method.. You will have to experiment with various increments to get smooth rotations at various speeds.

### Part 3: Handing in your work

You should hand in a directory that contains

• The source code for your solution
• A README file that describes your modifications of the basic assignment.

This is due by midnight on Wednesday, February 18.
